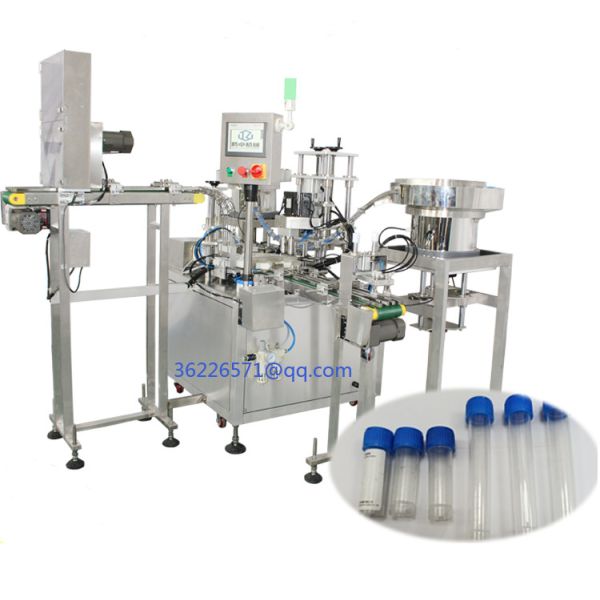

Automatic vaccine/Cell sap / Virus Test Solution in glass bottle or pet bottle filling packing machine production line
Reagent filling machine, antiviral liquid filling machine, test tube filling machine
technical parameter
| controlled system | integrated gas and electricity and PLC system |
| ideal reagent filling equipment | reach GMP medicine production standard |
| equipment adopts | high-precision pump |
| effect | high filling precision and achieves a beautiful effect |
| servo motor control | would controlable grasp the cap and screw the cap protect the cover from being scratched tightly. |
it is suitable match with other packing and Marking, visual inspection function, automatic boxing and other functions machine on line use.
The operation of the machine implements security guarantees, fault alarms and other settings to ensure that no inspection is required from employees such as pipe entry-filling-uncovering-grasping cover-capping-labeling-charging.
This vaccine filling production line can also be applied to the filling production of various vaccines of different specifications, such as vaccines, influenza vaccines, hepatitis B vaccines, BCG vaccines, animal vaccines and so on.
Technical parameters of vaccine filling machine:
Applicable bottles: plastic round bottles and glass round bottles 2-1000ml
Filling product: liquid vaccine
Production speed: 1000-3000 bottles/hour (according to users' products and requirements)
Sealing rate: ≥99%
Filling accuracy: ±1%
Power source: 380V 50HZ three-phase four-wire system
Dimensions: 5000×1200×1600mm (according to equipment configuration)
This machine is a non-standard customized equipment, the above parameters are for reference only, please contact us for details
Main products: liquid filling line, powder filling line, solid bottle production line, industrial robot, non-standard automation equipment
Applicable bottle type: according to user's product
Production speed: 20- -30 pieces/min; 40- -50 pieces/min
... ...
Power supply voltage: 220V 50Hz/380V 50Hz
Dimensions: According to user products
Weight: 200-500Kg (according to specific products)
Standard electrical configuration (please inform sales staff for non-standard brands)
PLC/touch screen→Taiwan system etc
Pneumatic components→Taiwan system etc
Low-voltage components → French, German, Japanese etc
Optoelectronics→Japanese, German etc
|
|
